VA 500 – Flow meter for compressed air and gases

Specifications

Digital Interface:RS 485, Modbus RTU

Analogue Output:4...20 mA for m³/h

Pulse Output:Scaleable pulse for total m³

Design Advantage: Insertion design allows quick sensor installation and removal without shutting down the pipeline.

VA 500 – Flow meter for compressed air and gases

RS 485 interface, Modbus RTU, 4...20 mA analogue output for m³/h, pulse output for m³.

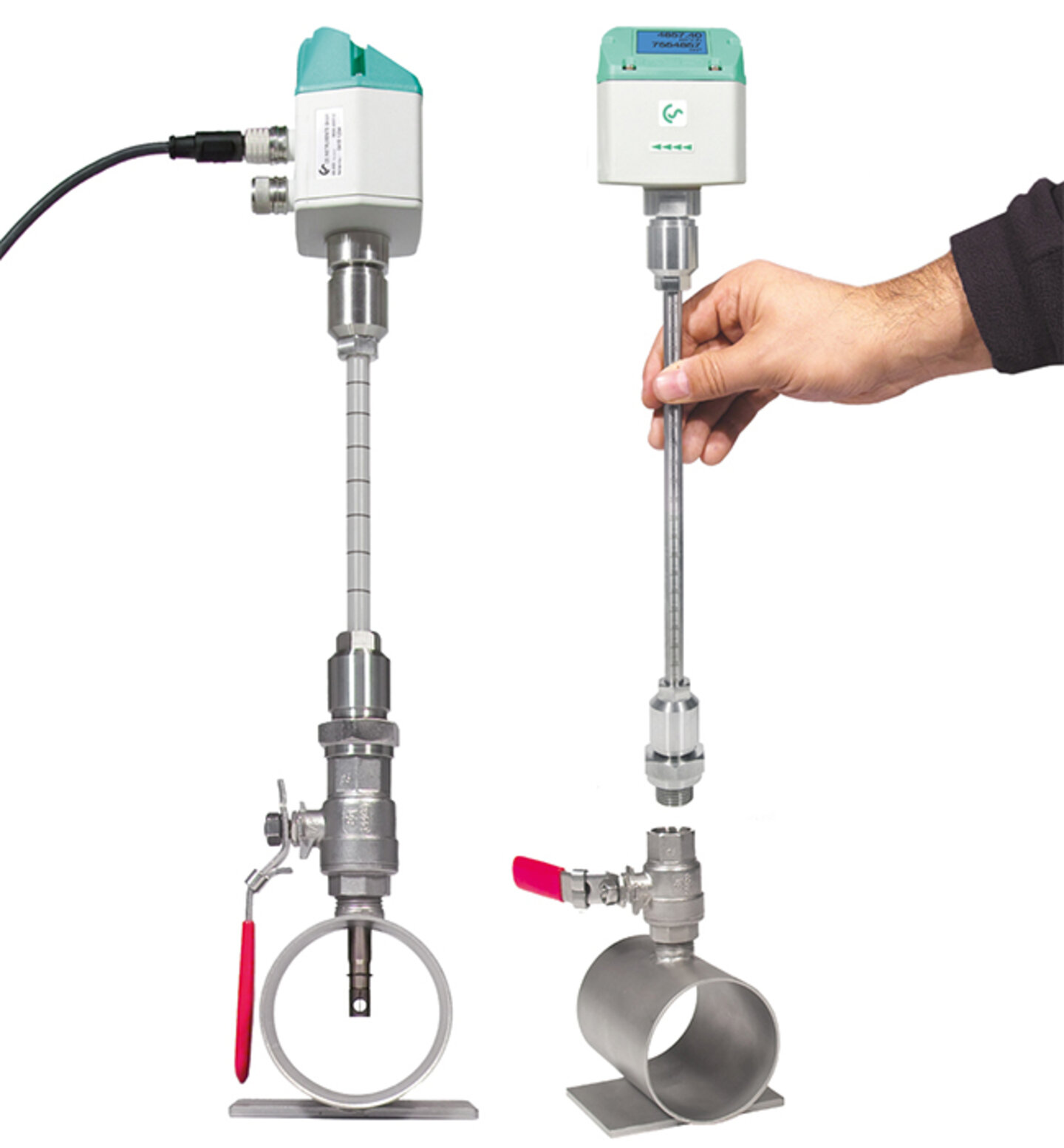

Hot-tap installation design allowing insertion under full network pressure up to 50 bar
Thermal mass principle measures standard flow directly, removing pressure corrections
Highly versatile insertion depths suited for diverse pipelines from DN 50 to DN 1000

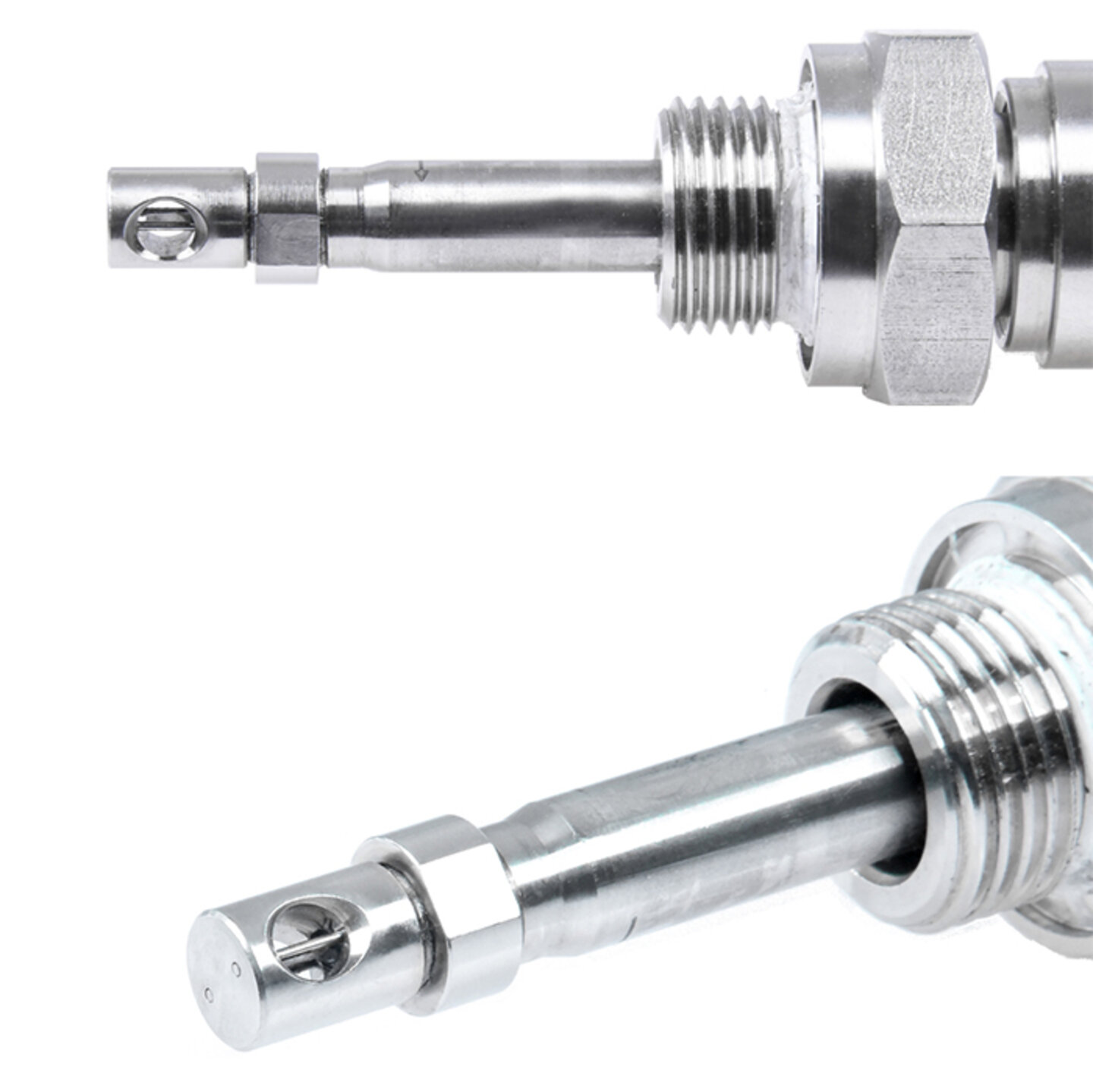

Durable, stainless steel metrology core with no mechanical moving pieces to wear

Details

Hot-tap installation design allowing insertion under full network pressure up to 50 bar
Thermal mass principle measures standard flow directly, removing pressure corrections
Highly versatile insertion depths suited for diverse pipelines from DN 50 to DN 1000
Durable, stainless steel metrology core with no mechanical moving pieces to wear
Digital Interface: RS 485, Modbus RTU
Analogue Output: 4...20 mA for m³/h
Pulse Output: Scaleable pulse for total m³
