Specifications

Analytical Element:High precision PID sensor with auto-cal

Measuring range:0.001 to 2.5 mg/m³

Standard case:IP65 waterproof flight case

Design Advantage: Long-term stable measuring without activated carbon filter replacements.

OIL CHECK 500 Portable

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations.
"Forced Pressure Variation" for Long-term stable measurement results - auto-calibration:
Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This method, which is protected by CS INSTRUMENTS, can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as activated carbon filters are required to generate zero air. The result is Low maintenance and Long-term stable Measuring.
Service-friendly, no downtime:
The sensor unit can be replaced by the customer on site. This eliminates the need to return the entire device for recalibration.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Analytical Element: High precision PID sensor with auto-cal
Measuring range: 0.001 to 2.5 mg/m³
Standard case: IP65 waterproof flight case

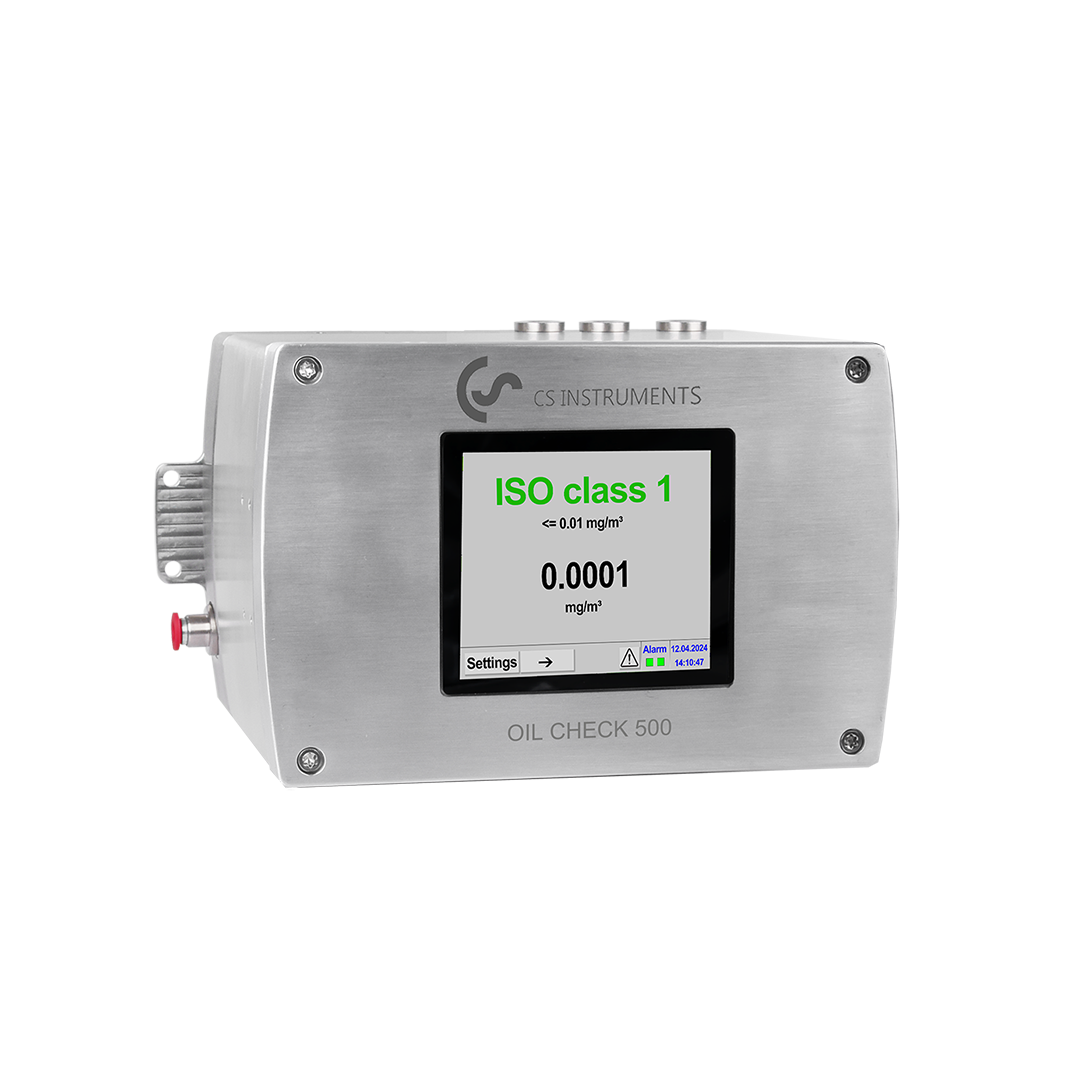

OIL CHECK 500

Maximum safety thanks to maximum sensitivity - continuous monitoring of the critical parameter vaporous residual oil content in accordance with ISO 8573.

Compressed air quality – mobile "All in one solution"

Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl.

Measuring compressed air quality – mobile transport carriage

Portable compressed air quality measurement, residual oil - particles - residual moisture - mobile transport carriage including wheels (external dimensions 0.

Mobile particle counter PC 400 according to ISO 8573

The high-precision, optical particle counter PC 400 measures particles from a size of 0.
