Specifications
Explosion Protection:II 2G Ex ib IIC T4 Gb
Measuring Range:-80 to +20 °Ctd
Design Advantage: Maintains extreme accuracy and safety compliance in hazardous areas.

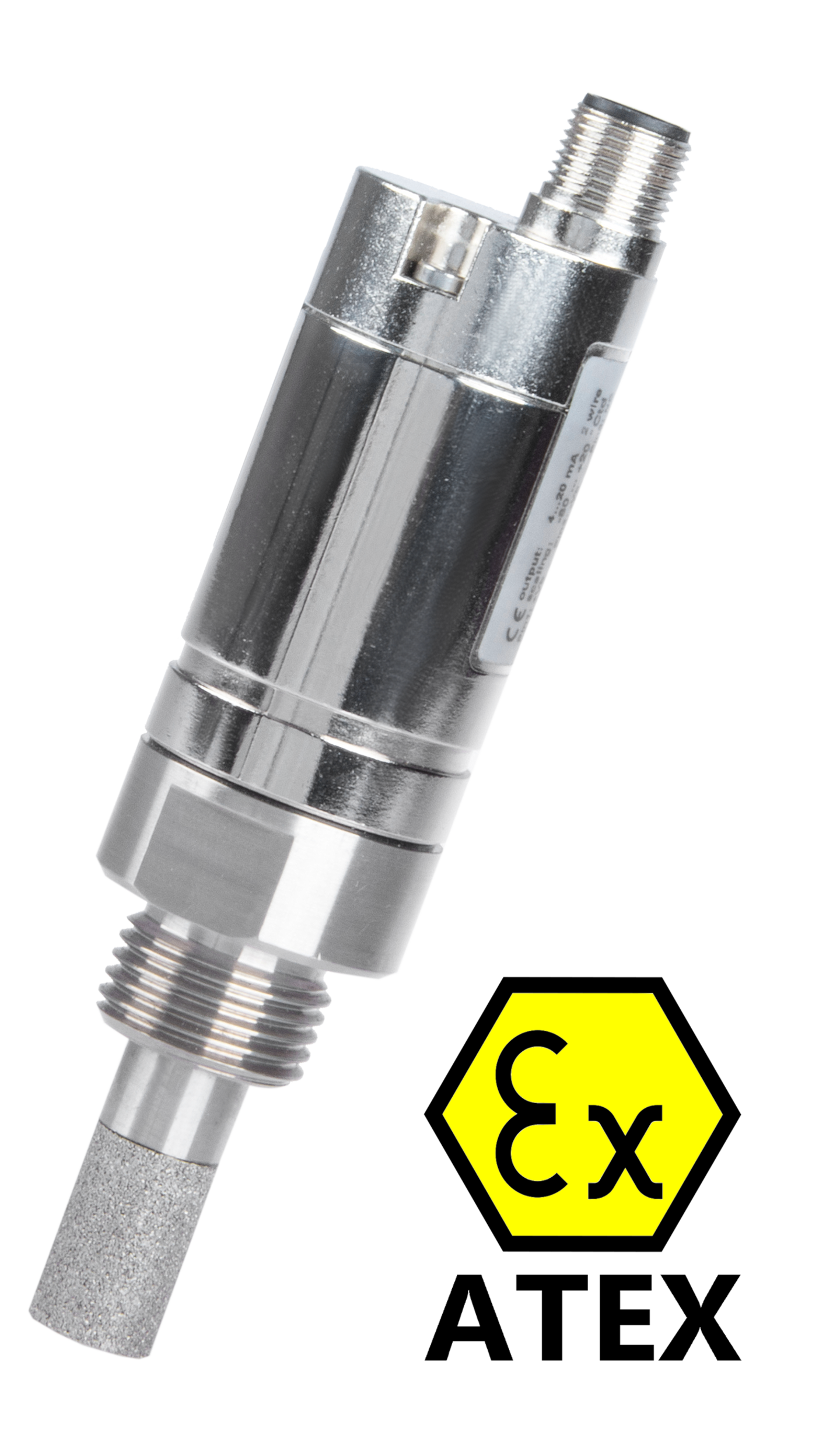

Dew point sensor FA 515 Ex
To measure the (pressure) dew point in potentially explosive atmospheres. Can be used in many non-aggressive gases.
- Intrinsically safe design certified with ATEX approval for explosive Zone 1 environments
- Measures low trace dew point down to -80 °Ctd with superior response times
- Dual wire robust loop connection with integrated safety isolating barrier protection options
- Engineered for refinery feed stock, hydrogen loop gas, and hazardous chemical pipelines
Details
- Intrinsically safe design certified with ATEX approval for explosive Zone 1 environments
- Measures low trace dew point down to -80 °Ctd with superior response times
- Dual wire robust loop connection with integrated safety isolating barrier protection options
- Engineered for refinery feed stock, hydrogen loop gas, and hazardous chemical pipelines
- Explosion Protection: II 2G Ex ib IIC T4 Gb
- Measuring Range: -80 to +20 °Ctd
