Specifications
Measurement Scope:Electrical energy, pressure, dew point, temp, consumption
Target:Compressor performance and efficiency audits
Power Inputs:Rogowski coils or current transformers
Design Advantage: Captures all relevant mechanical and electrical dimensions simultaneously in a single campaign.

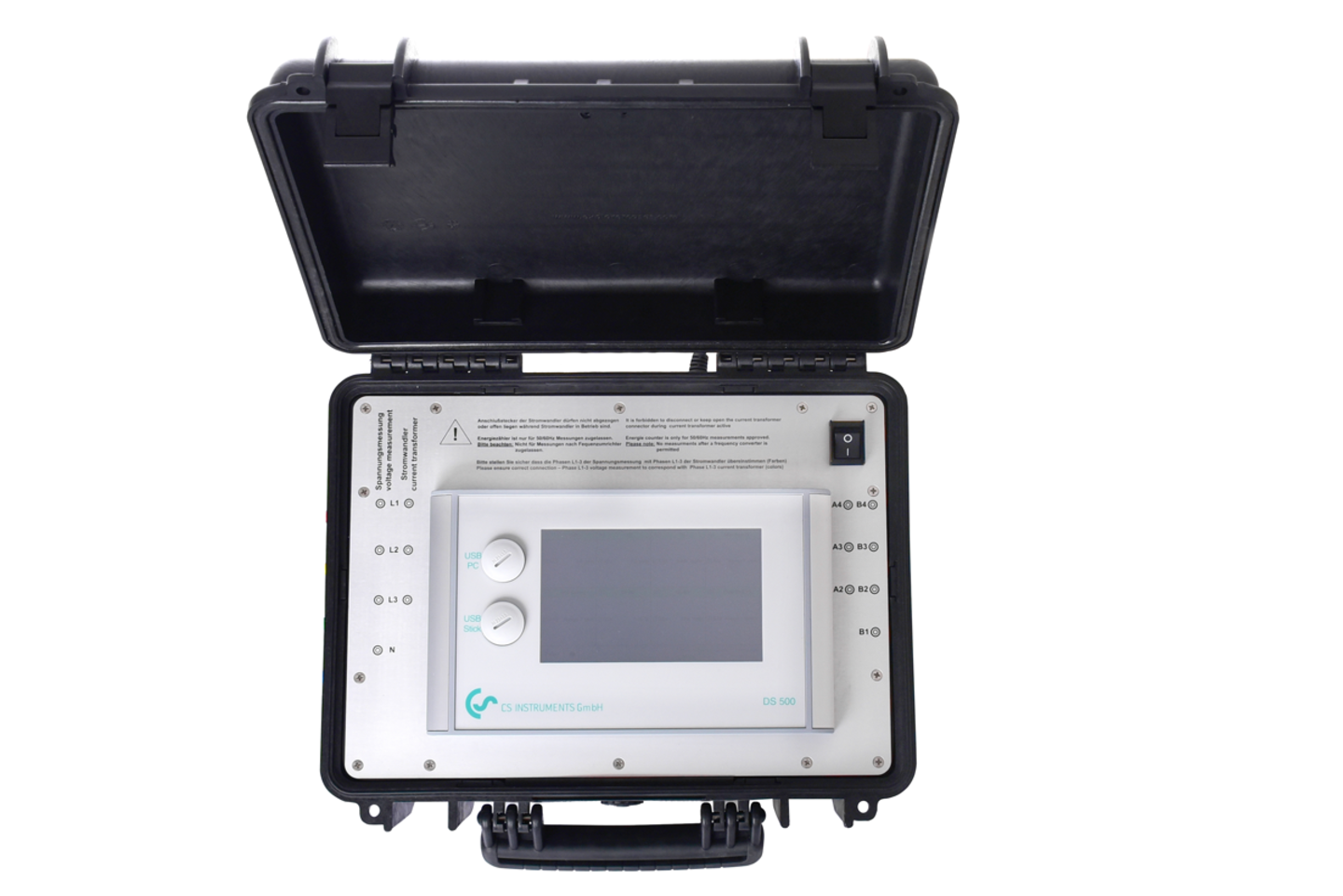

DS 500 PM mobile – efficiency measurement for compressors

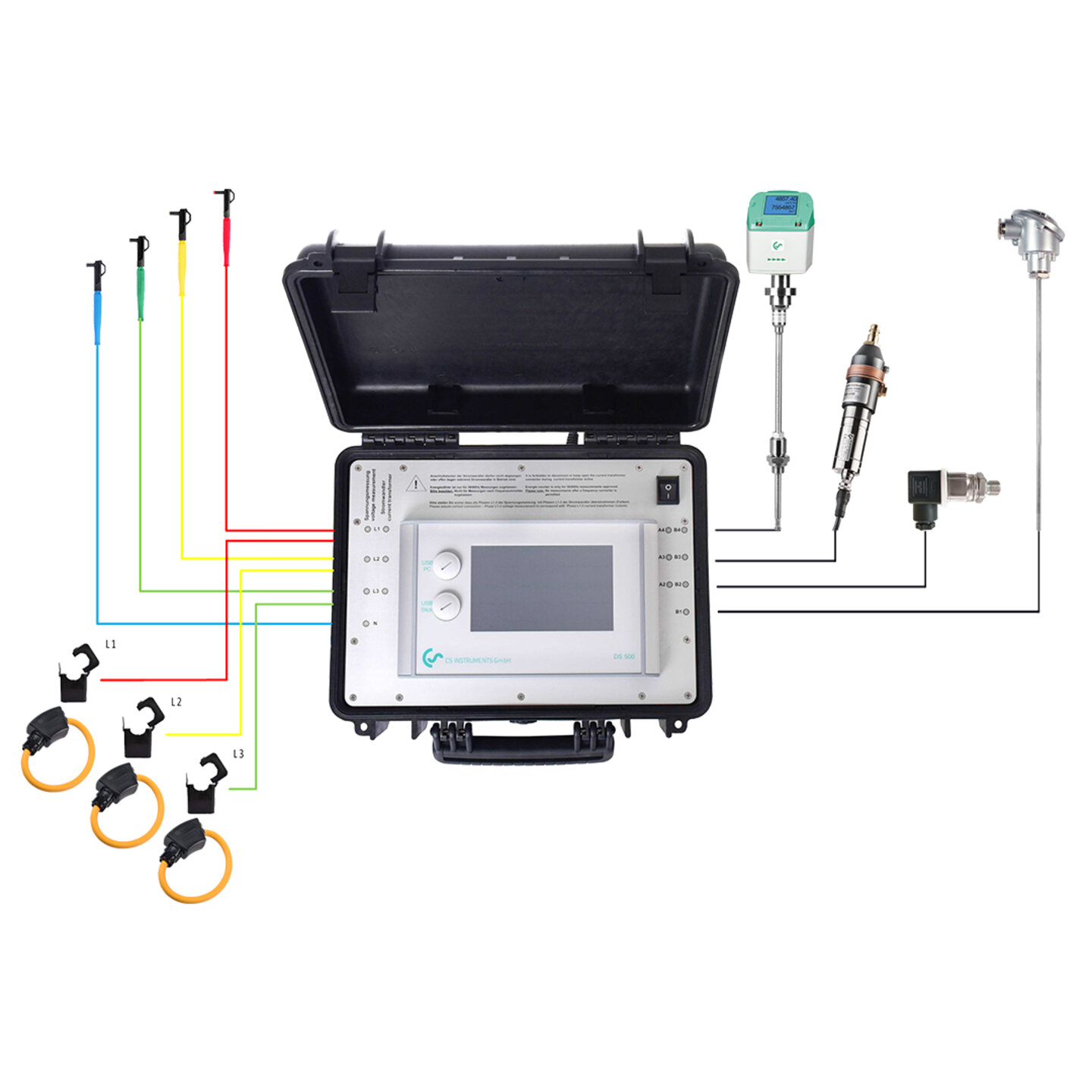

All-in-one measurement: electrical energy, pressure, dew point, temperature and consumption.
- High-precision measurement engineered for hazardous & industrial environments.
- Long-term sensor stability with auto-calibration diagnostics built-in.
- Dual analog loop outputs with integrated protective isolation barrier.
- Certified repeating accuracy with traceable calibration compliance reports.
Details
- High-precision measurement engineered for hazardous & industrial environments.
- Long-term sensor stability with auto-calibration diagnostics built-in.
- Dual analog loop outputs with integrated protective isolation barrier.
- Certified repeating accuracy with traceable calibration compliance reports.
- Measurement Scope: Electrical energy, pressure, dew point, temp, consumption
- Target: Compressor performance and efficiency audits
- Power Inputs: Rogowski coils or current transformers
