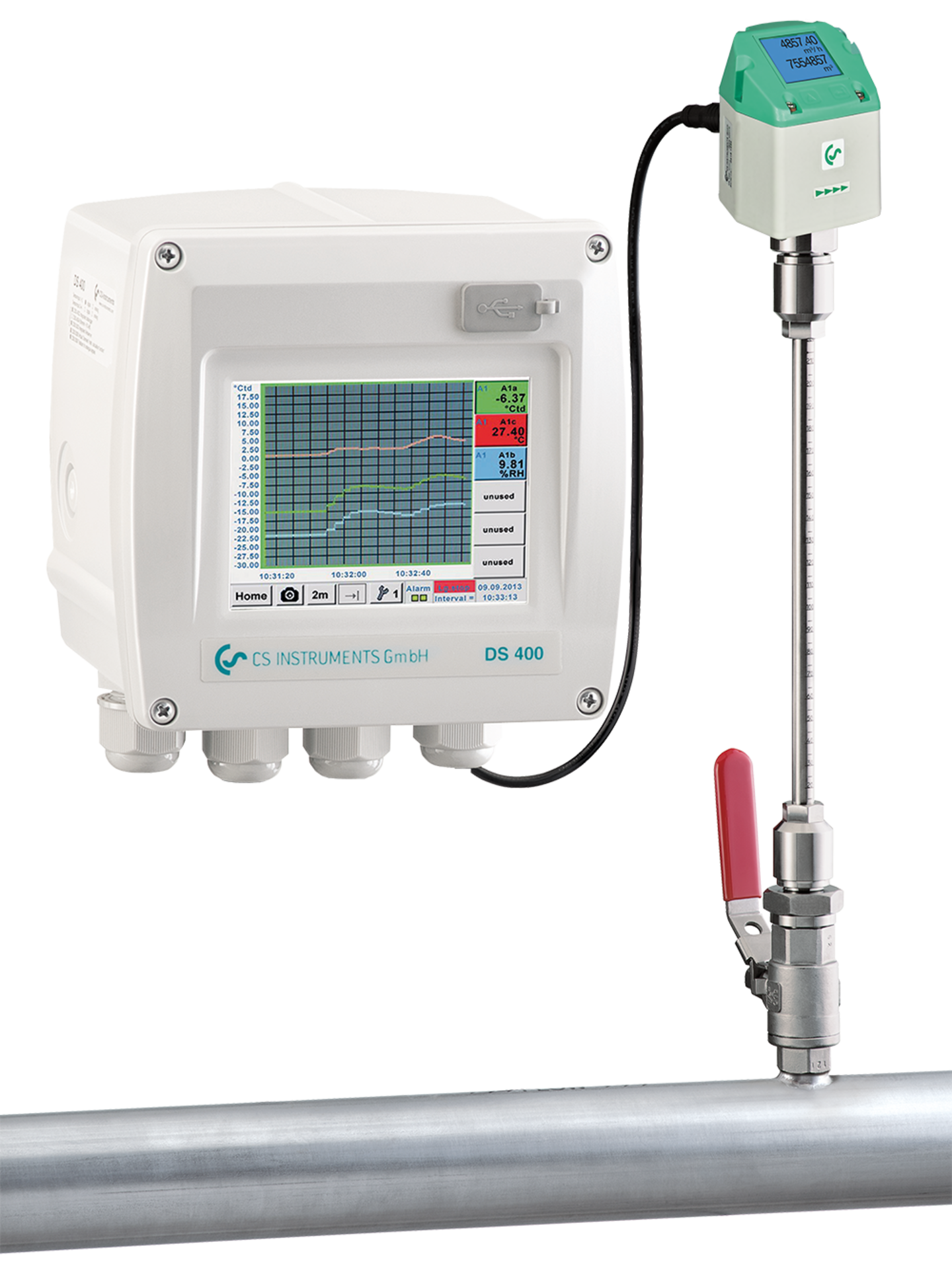

DS 400 – Flow measurement for compressed air and gases

Specifications

System Bundle:DS 400 touch panel + VA 500 sensor

Display Size:3.5" graphic touch terminal

Interfaces:Modbus, USB, optional Ethernet

Design Advantage: A pre-tuned and pre-calibrated continuous logging solution ready for immediate physical installation.

DS 400 – Flow measurement for compressed air and gases

Consisting of: chart recorder DS 400 and flow sensor VA 500.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
System Bundle: DS 400 touch panel + VA 500 sensor
Display Size: 3.5" graphic touch terminal
Interfaces: Modbus, USB, optional Ethernet
