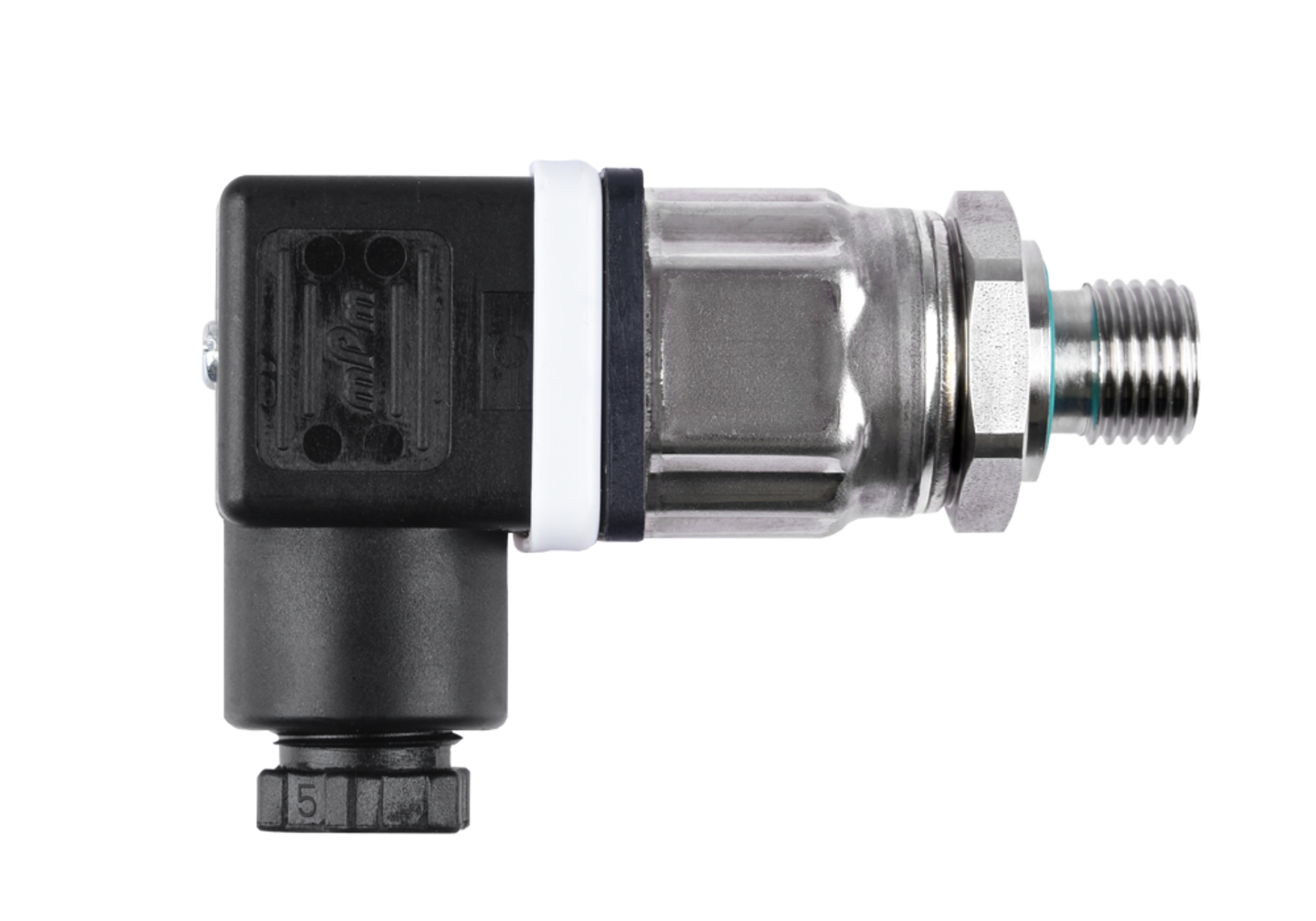

Standard pressure sensor CS 10 and CS 16

Specifications

Measuring Range:0...10 bar or 0...16 bar

Output Signal:4...20 mA, 2-Wire

Fitting Connection:G 1/2"

Design Advantage: A robust, general-purpose sensor for municipal and factory compressed-air networks.

Standard pressure sensor CS 10 and CS 16

Standard pressure sensor CS 10 and CS 16 are ideal for regular facility pressure networks operating up to 10 or 16 bar. Guarantees 0.5% accuracy of full scale.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Measuring Range: 0...10 bar or 0...16 bar
Output Signal: 4...20 mA, 2-Wire
Fitting Connection: G 1/2"
