Specifications

Relative Range:-1 to +15 bar

Maximum deviation:0.5% Full Scale

Housing Connection:G 1/2" G-Thread

Design Advantage: Fully covers vacuum to medium overpressure lines with active temperature compensation.

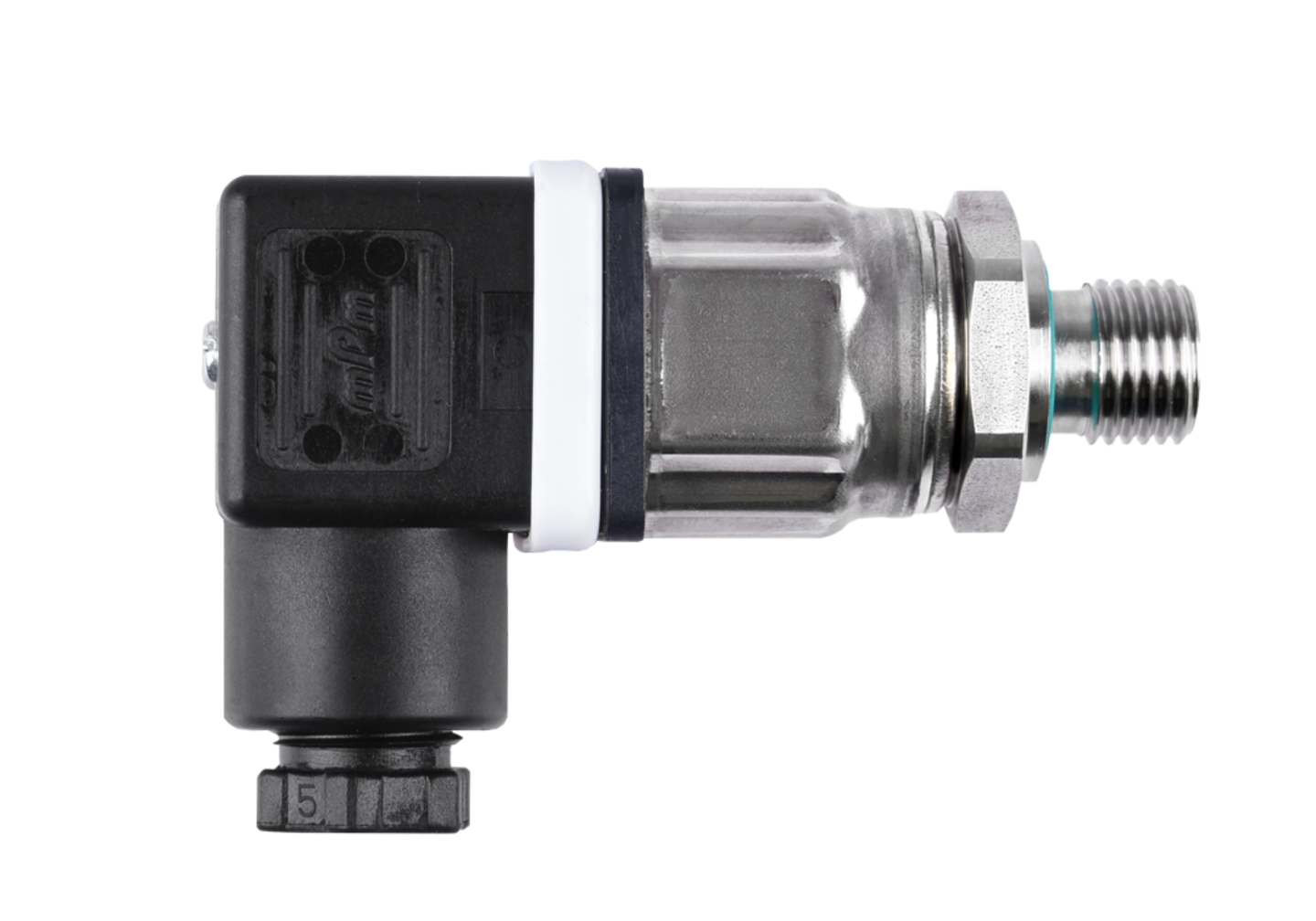

Precision pressure sensor CS -1...+15

Our precision pressure sensor CS -1 ... +15 is the perfect solution for pressure measurement in compressed air systems which operate between -1 and 15 bar. Measures with high accuracy of full scale 0.5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Relative Range: -1 to +15 bar
Maximum deviation: 0.5% Full Scale
Housing Connection: G 1/2" G-Thread
