Measuring compressed air quality – mobile transport carriage

Specifications

Mounted Components:OIL CHECK 500, PC 400, FA 510

Logger Panel:7" high-resolution DS 500 graphic logger

Trolley Scope:Heavy duty workshop steel framing

Dimensions (WxHxD):0.68 x 1.06 x 0.41 m

Design Advantage: Heavy-duty construction optimized for rough industrial plant transport.

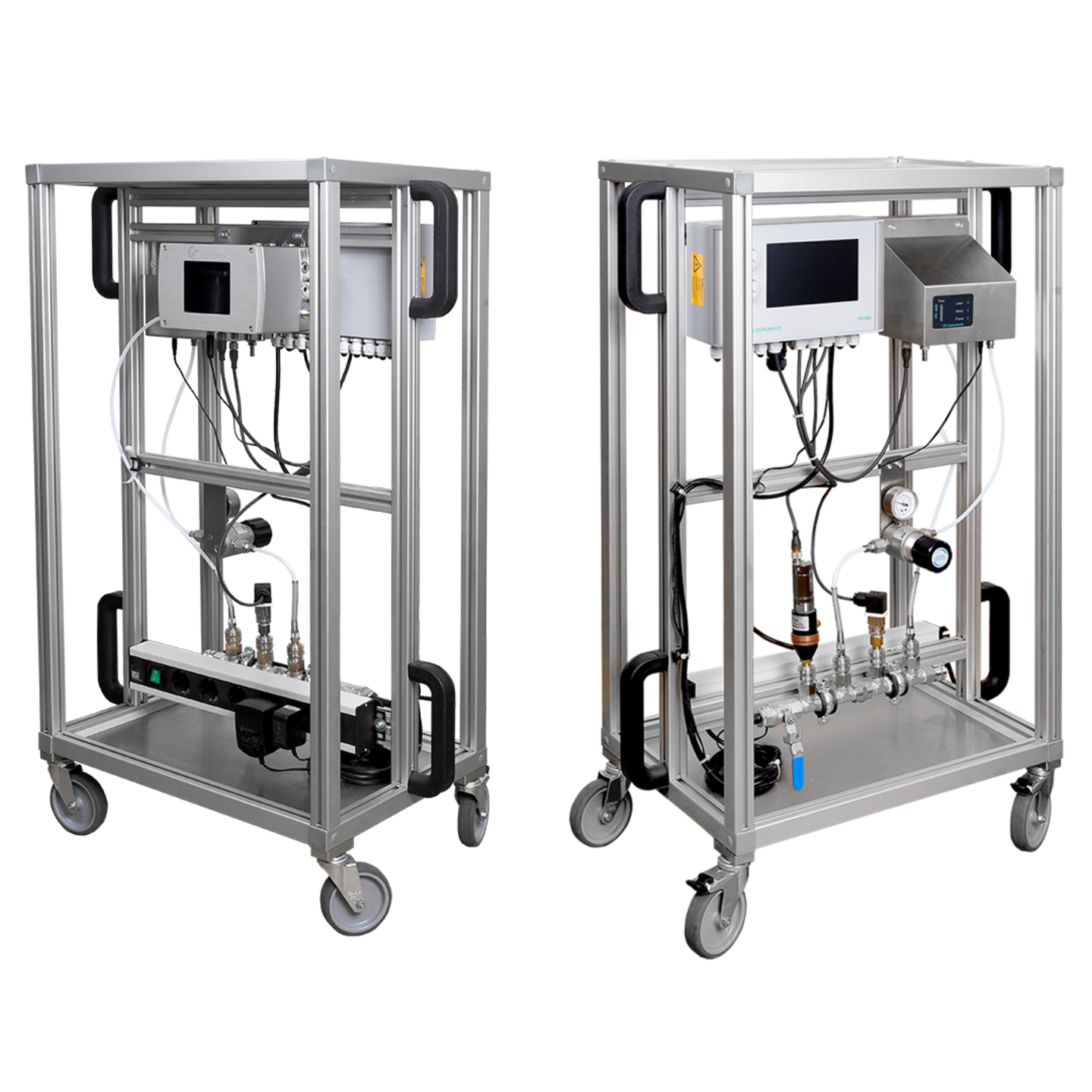

Measuring compressed air quality – mobile transport carriage

Portable compressed air quality measurement, residual oil - particles - residual moisture -
mobile transport carriage including wheels (external dimensions 0.68 x 1.06 x 0.41 m) (WxHxD) with permanently mounted components of the OIL CHECK 500, PC 400, FA 510.
DS 500 - The intelligent chart recorder
The heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the measurement data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Mounted Components: OIL CHECK 500, PC 400, FA 510
Logger Panel: 7" high-resolution DS 500 graphic logger
Trolley Scope: Heavy duty workshop steel framing
Dimensions (WxHxD): 0.68 x 1.06 x 0.41 m

OIL CHECK 500

Maximum safety thanks to maximum sensitivity - continuous monitoring of the critical parameter vaporous residual oil content in accordance with ISO 8573.

OIL CHECK 500 Portable

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations.

Compressed air quality – mobile "All in one solution"

Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" - Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl.

Mobile particle counter PC 400 according to ISO 8573

The high-precision, optical particle counter PC 400 measures particles from a size of 0.
