Specifications
Mounted Sensors:OIL CHECK 500, PC 400, FA 510
Active Display:7" graphic touchscreen panel
External dimensions:607 x 275 x 475 mm
Inlet connection:2 m PTFE grease-free hose
Design Advantage: Complete ISO 8573 mobile validation setup directly wheeled to any connection point.
Compressed air quality – mobile "All in one solution"
- Mobile compressed air quality measurement, residual oil - particles - residual moisture "All in one solution" -

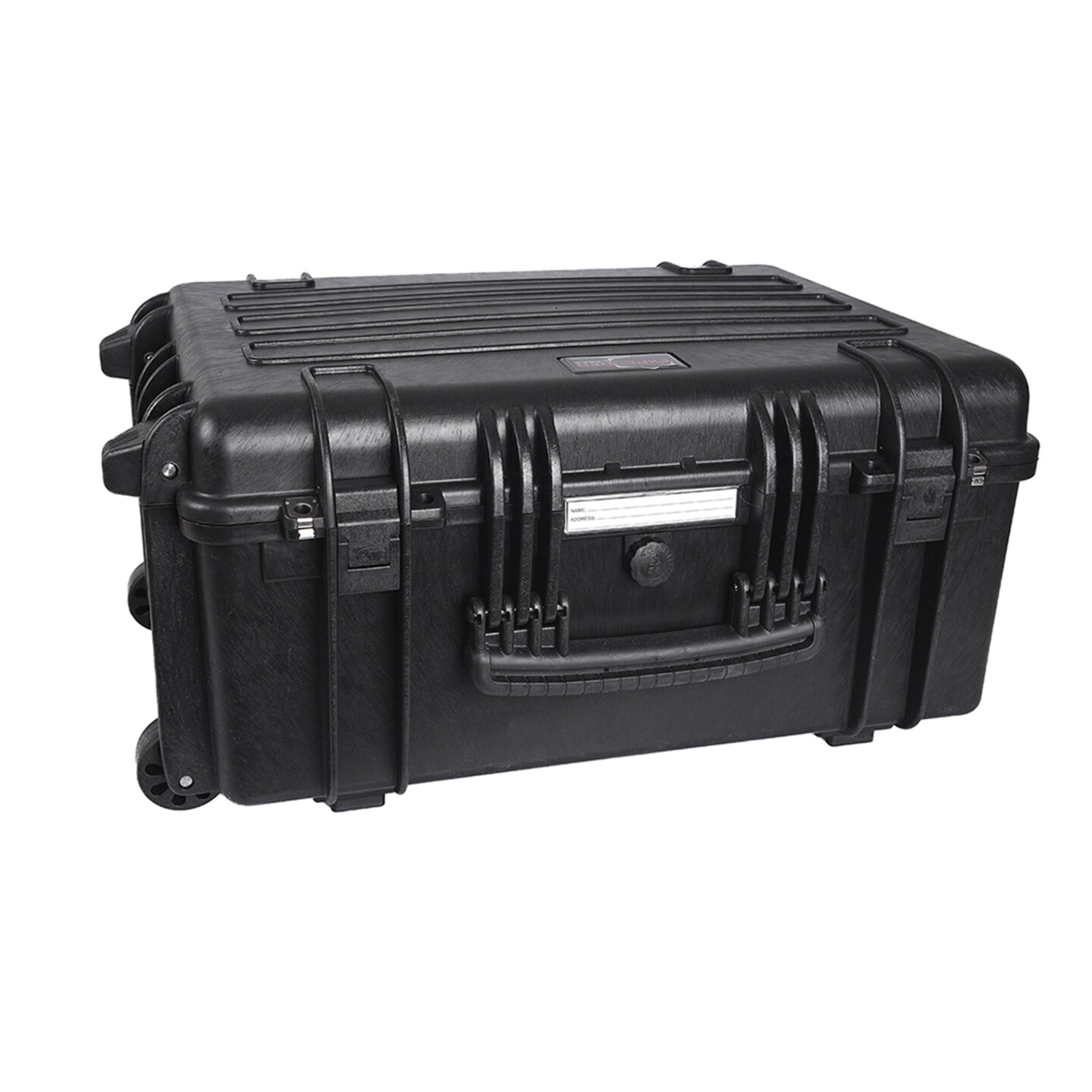

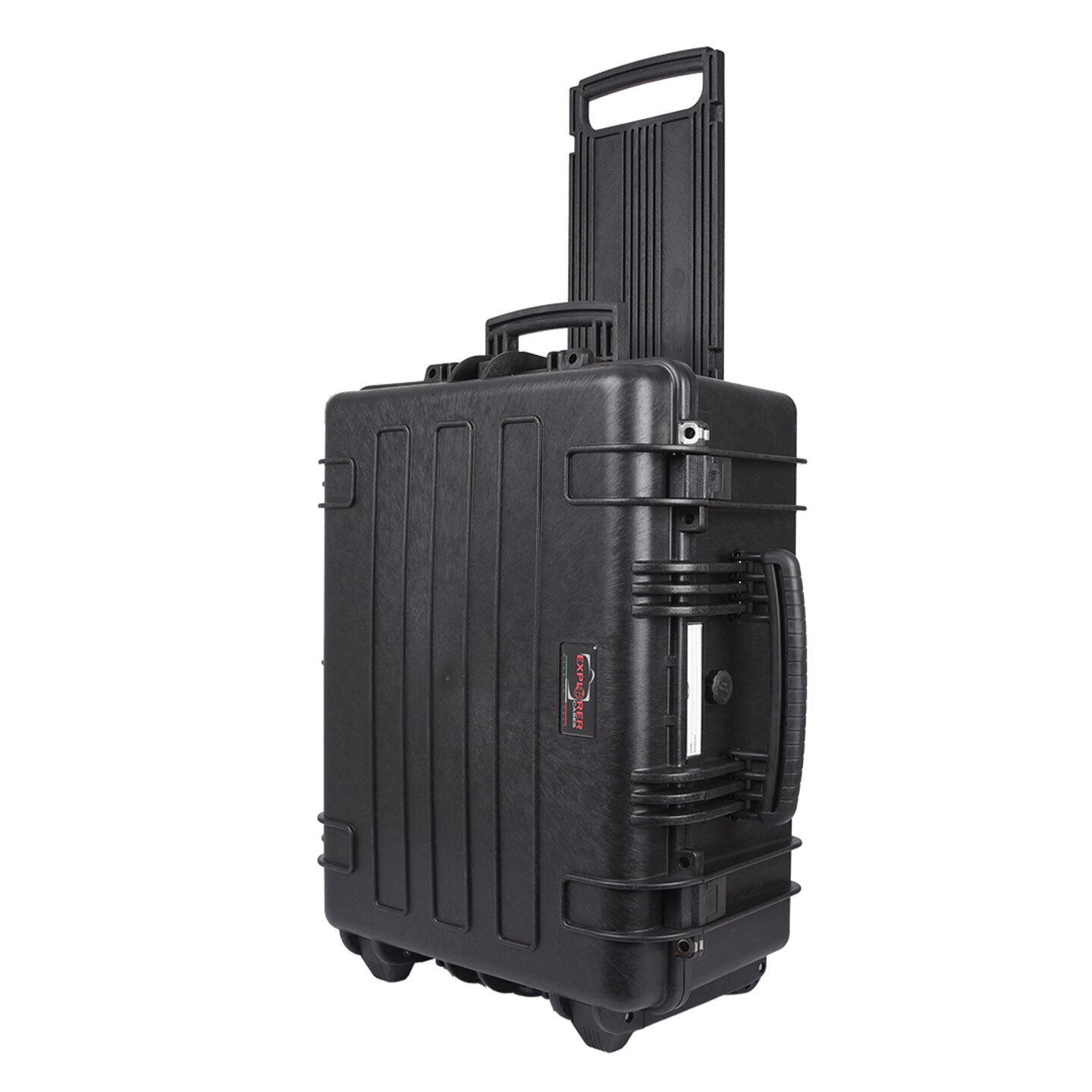

- Compact trolley with wheels (external dimensions 607 x 275 x 475mm) (WxHxD) and permanently mounted sensors: OIL CHECK 500, PC 400, FA510, incl. portable sampling system consisting of 2 m PTFE hose, quick coupling (oil and grease-free).
- DS 500 - The intelligent chart recorder
- At the heart of the compressed air quality measurement is the DS 500 chart recorder, which measures and documents the data from the sensors for residual oil, particles and residual moisture. The measured values are displayed graphically on the 7″ color display. The integrated data logger stores the measured values safely and reliably.
- High-precision measurement engineered for hazardous & industrial environments.
- Long-term sensor stability with auto-calibration diagnostics built-in.
- Dual analog loop outputs with integrated protective isolation barrier.
- Certified repeating accuracy with traceable calibration compliance reports.
Details
- High-precision measurement engineered for hazardous & industrial environments.
- Long-term sensor stability with auto-calibration diagnostics built-in.
- Dual analog loop outputs with integrated protective isolation barrier.
- Certified repeating accuracy with traceable calibration compliance reports.
- Mounted Sensors: OIL CHECK 500, PC 400, FA 510
- Active Display: 7" graphic touchscreen panel
- External dimensions: 607 x 275 x 475 mm
- Inlet connection: 2 m PTFE grease-free hose
