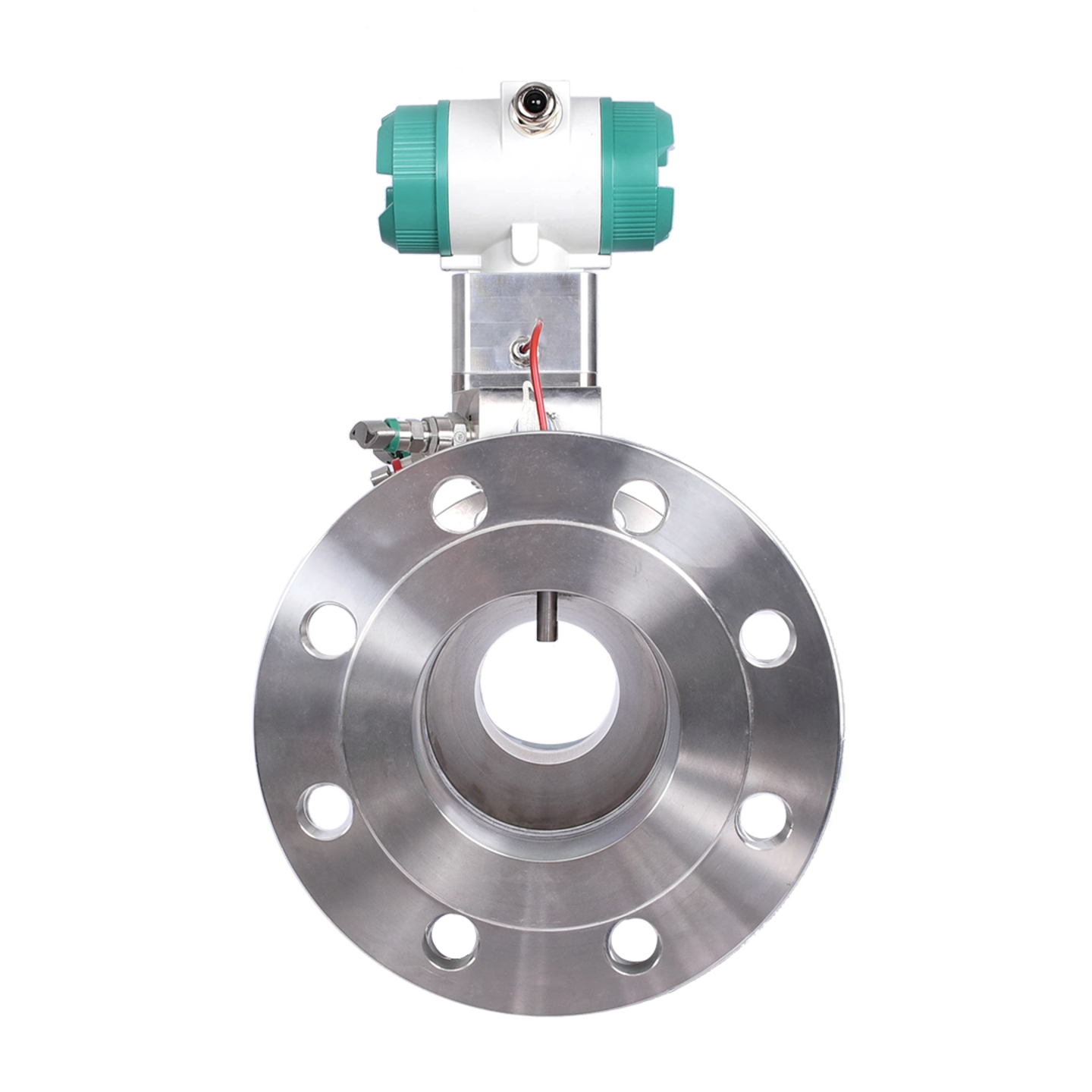

CMM 500 – High-precision measuring of compressor capacity

Specifications

Measurement Type:Compressor FAD capacity

Suitable Mediums:Wet or dry compressed air

Calibration Scope:ISO 1217 reference standard

Design Advantage: Enables precise capacity measurement immediately downstream of the compressor in wet moist air.

CMM 500 – High-precision measuring of compressor capacity

The CMM 500 can be used directly downstream of the compressor for measuring in wet compressed air, or as a compressed air meter for billing in dry compressed air.

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.

Details

High-precision measurement engineered for hazardous & industrial environments.
Long-term sensor stability with auto-calibration diagnostics built-in.
Dual analog loop outputs with integrated protective isolation barrier.
Certified repeating accuracy with traceable calibration compliance reports.
Measurement Type: Compressor FAD capacity
Suitable Mediums: Wet or dry compressed air
Calibration Scope: ISO 1217 reference standard
